Which Espruino?

Espruino comes in six flavours, all of which:





Puck.js

  • Bluetooth Low Energy
  • Software programmable NFC tag
  • Red, Green and Blue LEDs, and General purpose button
  • Infrared transmitter
  • Magnetometer, thermometer, light and battery sensors
  • v2: Accelerometer and Magnetometer
  • FET for high-power outputs
  • 36mm dia, 12.5mm thick case (64mm x 62mm x 16mm in cardboard box)
  • Tough Silicone cover and ABS plastic rear with lanyard mount
  • 64MHz Cortex M4 processor
  • 64kB RAM, 512kB Flash
  • 9 GPIO pins (7 on 0.1" pitch)
  • Voltage range: 2.0v - 3.6v
  • See more technical information

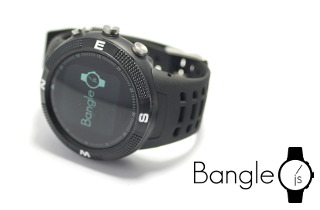

Espruino Bangle.js

  • 240x240 16 bit LCD
  • Bluetooth Low Energy
  • GPS, Heart Rate, Accelerometer and Magnetometer
  • Vibration motor
  • Waterproof (IP68)
  • 50mm x 50mm x 17mm
  • 64MHz Cortex M4 processor
  • 64kB RAM, 512kB on-chip flash, 4MB External flash
  • 400mAh LiPo battery, USB charge cable
  • See more technical information



MDBT42Q

  • Bluetooth Low Energy
  • Red and Green LED, and General purpose button
  • 18mm x 28mm x 4mm thick
  • 64MHz Cortex M4 processor
  • 64kB RAM, 512kB Flash
  • 22 GPIO pins (incl 7 analog)
  • Voltage range: 2.0v - 16v @ 20uA average
  • Available with on-board or external aerial
  • Bare pre-programmed module also available
  • See more technical information

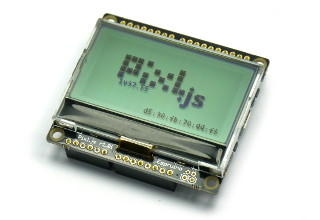

Espruino Pixl.js

  • 128x64 backlit LCD display
  • Bluetooth Low Energy
  • Arduino footprint (20x GPIO)
  • Software programmable NFC tag
  • 60mm x 53mm x 15mm, 4x 3mm mounting holes
  • 64MHz Cortex M4 processor
  • 64kB RAM, 512kB Flash
  • Power from CR2032, USB, or Arduino (2.0v - 16v, 0.3mA at idle)
  • See more technical information



Espruino Pico

  • 33mm x 15mm (1.3in x 0.6in)
  • On-board Type A USB
  • Red and Green LEDs, General purpose Button
  • 84Mhz ARM Cortex M4 processor
  • 384kB Flash, 96kB RAM
  • 22 GPIO pins: 21 PWM, 9 ADC, 2 USARTs, 3 SPI, 3 I2C
  • CE and RoHS certified
  • Available with or without soldered pins
  • Voltage range: 3.5v - 16v
  • See more technical information

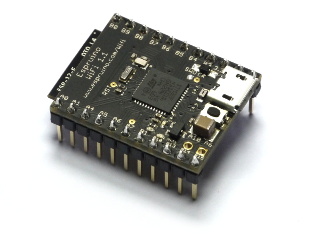

Espruino WiFi

  • 30mm x 23mm (1.2 x 0.9 inch)
  • ESP8266 WiFi (802.11 b/g/n)
  • Micro USB, WiFi activity LED, Red and Green LEDs and General purpose Button
  • 100Mhz ARM Cortex M4 processor with external 32kHz oscillator
  • 512kB Flash, 128kB RAM
  • 21 GPIO pins: 20 PWM, 8 ADC, 1 USART, 3 SPI and 2 I2C
  • Voltage range: 3.5v - 5v
  • See more technical information



Original Espruino

  • 54mm x 41mm (2.2in x 1.6in - half business card)
  • Micro USB, Micro SD card, JST PHR-2 battery connector
  • RGB LEDs, Reset + General purpose Buttons
  • 72Mhz ARM Cortex M3 processor
  • 256kB Flash, 48kB RAM
  • 44 GPIO pins: 26 PWM, 16 ADC, 5 USARTs, 3 SPI, 2 I2C and 2 DACs
  • CE and RoHS certified
  • Prototype area
  • Voltage range: 3.5v - 16v
  • See more technical information





Distributors

Espruino is available from the following distributors (click to go directly to the product):

Original Pico
Unpinned
Pico
Pinned
WiFi Puck.js Pixl.js MDBT42Q Bangle.js Accessories
Specifications
More Info More Info More Info More Info More Info More Info More Info More Info
RAM (kB)48969612864646464
Flash (kB)256384384512512512512512 + 4M
Speed (MHz)72848410064646464
LEDs3222312-
Buttons21111413
ExtrasUSB MicroSD Bat connector Proto areaUSBUSBUSB WiFiBluetooth LE NFC, Gyro Accelerometer Magnetometer Silicone case CR2032 batteryBluetooth LE 128x64 LCD NFC Arduino pinout CR2032 batteryBluetooth LEBluetooth LE 240x240 LCD Vibrate, GPS Accelerometer Magnetometer Heart Rate 400mAh battery
Buy Direct (United Kingdom)
Tindie

Prices in USD, EUR or GBP,
devices are shipped from the UK

Tindie

Tindie prices are in USD, but include
VAT and are shipped from the UK

USA/CANADA
Adafruit
BuyaPi.ca
KitsBitsnBytes
UK/EUROPE (UK)
Pimoroni
#digitalmeans
The Pi Hut
Droidscript shop
Beaconzone
UK/EUROPE (FRANCE)
Lextronic
UK/EUROPE (SWITZERLAND)
Maker-shop.ch
UK/EUROPE (NETHERLANDS)
Elektor
RUSSIA
Amperka
CHINA
Seeed Studio
Seeed Studio
AUSTRALIA
IoT Store
Bulk Purchase Discounts

If you want to order 20 or more boards (or become a distributor), please order from our online shop or contact us directly.

We offer large discounts for bulk purchases. Prices excluding Postage and Packing are:

Original Pico
Unpinned
Pico
Pinned
WiFi Puck.js Pixl.js MDBT42Q Bangle.js
>= 20 (ex VAT) £16.67 £13.33 £13.33 £20.00 £20.00 £24.00 £13.33 £48.00
>= 50 (ex VAT) £15.83 £12.66 £12.66 £19.00 £19.00 £22.80 £12.66 £45.00
>= 100 (ex VAT) £15.00 £12.00 £12.00 £18.00 £18.00 £21.60 £12.00 £44.00
>= 1000 Please contact us
