Bangle.js Technical Information

For general Bangle.js information, try the Bangle.js 1 or the Bangle.js 2 pages

This page contains detailed information on Bangle.js's 1's internals. Click here for Bangle.js 2. If you're just writing JS then you should have no need for this information, but if you plan on modifying the Bangle.js firmware it might be of interest.



  • IP68 Waterproof (everyday use, not swimming or baths)
  • Nordic 64MHz nRF52832 ARM Cortex-M4 processor with Bluetooth LE
  • 64kB RAM 512kB on-chip flash, 4MB external flash
  • 1.3 inch 240x240 16 bit LCD display with 2 zone touch
  • GPS/Glonass receiver (UBlox)
  • Heart rate monitor
  • 3 Axis Accelerometer (with Pedometer and Tap detect)
  • 3 Axis Magnetometer
  • Vibration motor
  • 350mAh battery, 1 week standby time
  • 5 x 5 x 1.7 cm case, plastic with stainless steel ring
  • Can be disassembled with just 4 screws


Where mentioned in the source code or filenames, Q3 references Bangle.js 2, and F18 references Bangle.js 1.

The Espruino version for Bangle.js has a few specific modifications:

  • jswrap_bangle.c contains all Bangle.* functions and pretty much all Bangle.js functionality.
  • Some functionality (like menus) is in JavaScript which is built into the firmware. Those JavaScript files are here
  • describes the build
    • The SPIFLASH device causes SPIFLASH_BASE to be defined, which enables external SPI flash memory support in jshardware.c
  • The bootloader starts at 0x7A000 (4k less than the standard SDK12 bootloader) because it was originally an SDK11 device


Want to get inside? Check out the Bangle.js Disassembly page


As above the GPS is a UBlox UBX-M8130

On boot, it reports: ROM CORE 3.01, PROTVER=18.00*11

Espruino handles reception and parsing of NMEA data from the GPS UART when Bangle.setGPSPower(1) is called.

However it is possible to also send UBLOX UBX commands to configure the GPS - see


There's IO connected to the nRF52, plus an IO expander to provide power to some other things.


Pin Name Notes
D0 LCD_D0 Bits 0-7 all set together via (char*)P0_OUT
D1 LCD_D1 Bits 0-7 all set together via (char*)P0_OUT
D2 LCD_D2 Bits 0-7 all set together via (char*)P0_OUT
D3 LCD_D3 Bits 0-7 all set together via (char*)P0_OUT
D4 LCD_D4 Bits 0-7 all set together via (char*)P0_OUT
D5 LCD_D5 Bits 0-7 all set together via (char*)P0_OUT
D6 LCD_D6 Bits 0-7 all set together via (char*)P0_OUT
D7 LCD_D7 Bits 0-7 all set together via (char*)P0_OUT
D11 TOUCH RIGHT inverted
D12 Battery charging when low Input pullup
D13 VIBRATE - active high
D16 TOUCH LEFT inverted
D17 Flash D3 (RST - connect to VCC)
D18 Speaker (if included), otherwise inverted output on HRM PCB
D19 Flash SCLK
D20 Flash D1 (MISO)
D21 Flash CS
D22 Middle button inverted
D23 Top button inverted
D24 Bottom button inverted
D27 Flash D0 (MOSI)
D28 IO expander reset
D29 HRM Analog
D30 Battery Level 0.51=low, 0.62=good
D31 Flash D2 (WP - connect to GND)

IO Expander

Mask Description Default value
0x01 GPS 0
0x02 NC
0x04 NC
0x08 NC
0x10 NC
0x20 LCD backlight 1
0x40 LCD reset 1
0x80 HRM 1


PCB pin markings

Click on the pictures above for more zoomed in information. Also check out this excellent forum post for even more detailed reverse engineering.

SWD / Programming

You can completely reprogram (and even debug) the nRF52 chip inside Bangle.js with the SWD pins. These are on the circuit board under the LCD.

You can carefully pull up the LCD and cut/tear through the foam tape holding it on. Underneath that you'll find 4 pins, labelled as follows:

SWD pins

You only need GND, SWDID and SWDCLK (VDD is not required).

See Advanced Debug for more information on programming via SWD.

Heart Rate monitor PCB

On the bottom right of the PCB (by the label R6) are the two pads for the speaker. The one labelled + goes directly to 3.3v, and the one next to it goes to pin D18 via a transistor.

As such, D18 is inverted, and can only be used as an output - however it is powered (pulldown via MMDT3904) so is able to drive reasonably high loads (up to ~100mA).

The heart rate monitor itself is powered from the IO expander, and has just a single analog output, which is D29.


Charging pins

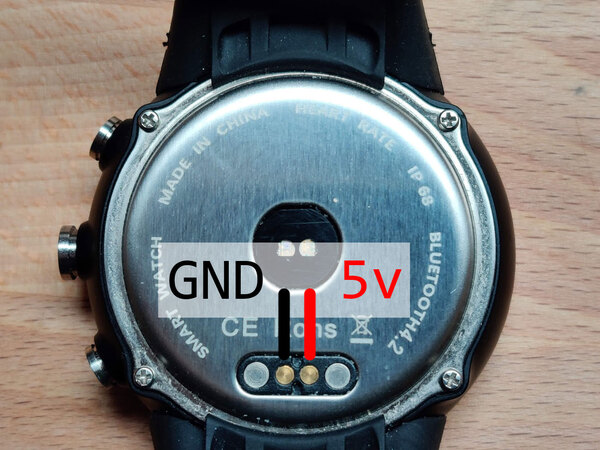

The two circular gold pads interface with the charging circuit. The right-hand one (with them at the top of the watch) is connected to GND, and the left-hand one goes to the charging circuitry.

Charging pins


SCK=D14, SDA=D15

  • 0x0C - GMC303 magnetometer
  • 0x1E - KX023 accelerometer
  • 0x20 - io expander
  • 0x7C - Unknown. Only checked once by OEM firmware.
